I - Beam Coneveyors

While enclosed track conveyors handle light-to-medium manufacturing, I-beam overhead conveyors are the heavy-duty workhorses of industrial finishing. If you are powder coating heavy chassis, structural steel beams, heavy agricultural machinery, or massive engine blocks, the standard enclosed tracks will buckle under the load. That is where the I-beam conveyor steps in.

What is an I-Beam Overhead Conveyor?

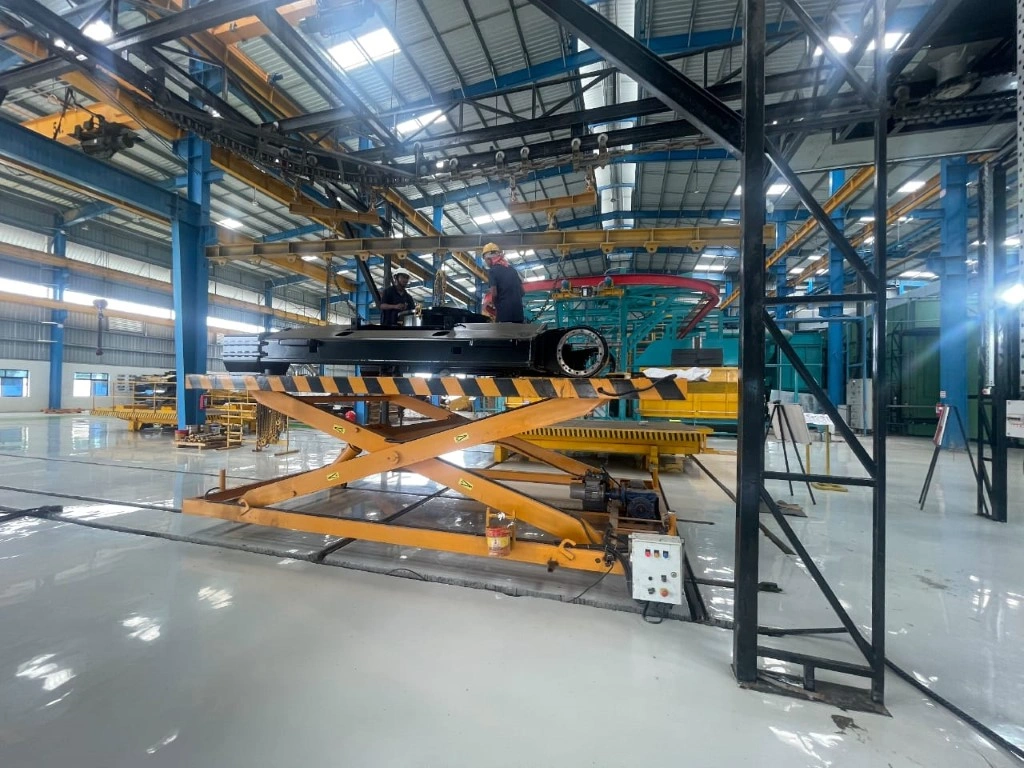

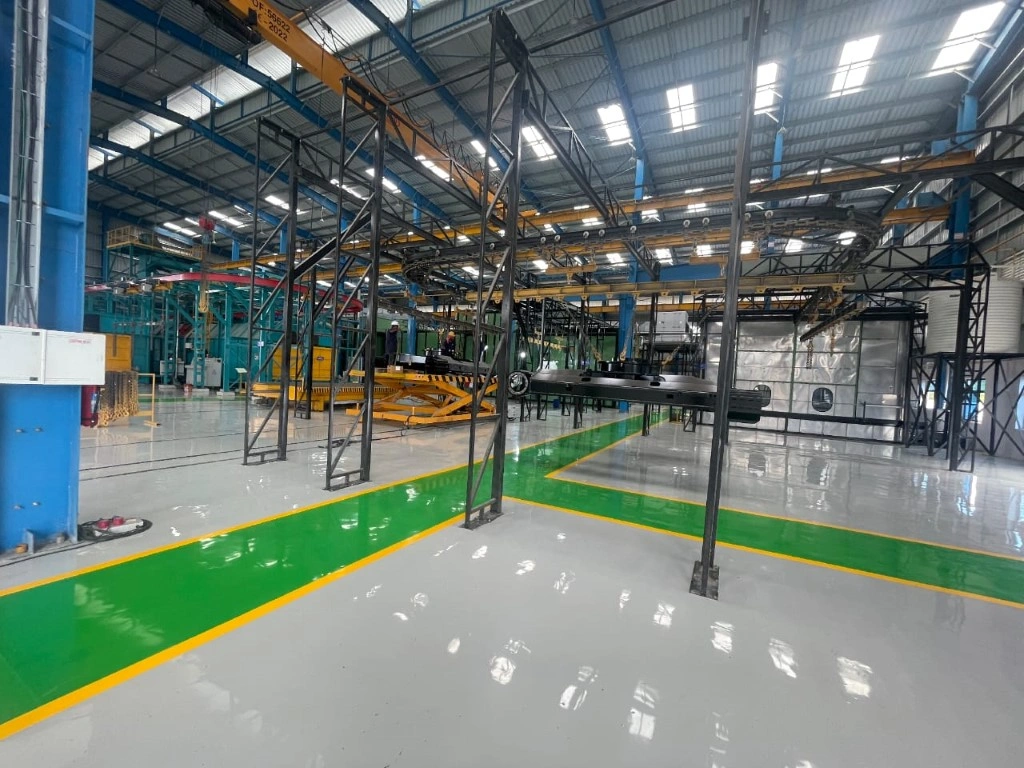

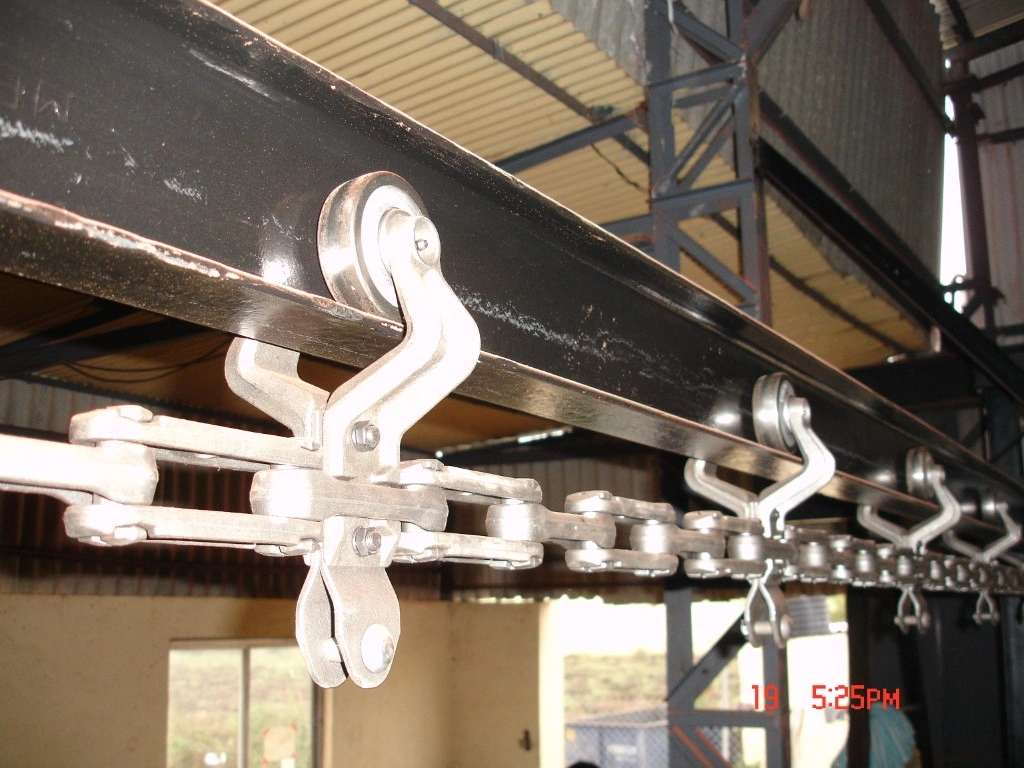

An I-beam conveyor consists of a fixed, exposed structural steel I-beam (typically 3-inch, 4-inch, or 6-inch profiles). Heavy-duty trolleys, consisting of paired wheels connected by a forged steel bracket, roll directly along the bottom flange of the beam.
An open, rivetless forged steel chain links these trolleys together and pulls them through the system. Everything about this system is exposed, robust, and built for brute strength.

The Advantages in Finishing Environments

Despite being an older, more exposed technology compared to enclosed tracks, I-beam systems are irreplaceable in high-capacity powder and liquid paint shops for several core reasons:

  • Immense Load Carrying Capacity

    This is the primary selling point. While an enclosed track maxes out around 100 to 125 lbs per point, a standard 3-inch I-beam trolley easily carries 200 lbs, a 4-inch carries 400 lbs, and a 6-inch system can support up to 1,200 lbs on a single trolley. By pairing trolleys with load bars, single part weights can scale to several thousand pounds.

  • Extreme Thermal and Chemical Resistance

    Because there are no enclosed cavities, heat from curing ovens escapes effortlessly around the components, preventing heat tracking. Furthermore, the open design means that chemical overspray from pretreatment washes or intense heat inside (262C) ovens won't get trapped inside a housing to cause component binding. The heavy forged steel construction handles rapid thermal cycling (moving from cold rooms to hot ovens) with very low risk of structural warping.

  • Ultimate Serviceability

    Every single component—wheel, master link, pin, and bracket—is completely visible and accessible. Maintenance teams can inspect, lubricate, or replace a trolley or chain link without tearing down or opening up housing tracks.

Common Classifications for Paint Lines

I-beam conveyors are generally classified by the size of the beam and chain used. In powder coating and liquid paint operations, two sizes dominate:

  • X-348 (3-inch Beam): Excellent for mid-heavy components like motorcycle frames, heavy-duty shelving, and small machinery parts.

  • X-458 (4-inch Beam): The standard for heavy industrial finishing, automotive assembly paint lines, and large equipment components.

  • X-678 (6-inch Beam): The standard for very heavy industrial finishing, Automotive, Industrial and Earth Moving assembly paint lines, and large agricultural equipment components.

If your plant handles massive structural components where clean-room precision takes a backseat to brute physical capacity, the I-beam system is the most cost-effective, rugged, and reliable option available.
