Booth Liquid Plant
Home
Customers




anand-impex anand-impex anand-impex

Booth Liquid Plant - Dry Back Booth

The Dry Back booth is recommended where the paint overspray volumes are low e.g job coating. Paint testing.
This booth consists of a sheet metal enclosure divided into two sections by a divided wall which houses the paint arrestor filters.
The front section forms the working chamber while the near section houses the exhaust blowers which ensures the proper air velocity in the working chamber as also the exhaust of the inflammable solvent vaporous. The heavier paint particles are deposited on the filter. The deposited paint sludge is to be removed periodically.
All booths are available in Batch / Conveyorised and Pressuirsation option.

Dry Back Booth
anand-impex
anand-impex anand-impex anand-impex


Request A Quote


anand-impex anand-impex anand-impex
anand-impex

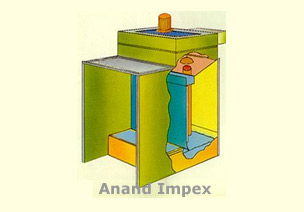

Booth Liquid Plant - Side Draft Paint Booth ( No Pump )


side dtaft paint booth

Side Draft Paint Booth is recommended where the paint consumption is low but the pollution control requirements call for wet type paint killing system. There is no pump for water circulation. The suction head of exhaust blower is used for lifting the water. During the process vigorous contact between paint and water added with chemicals leads to paint killing.
The killed paint drops back into the tank and the clean air is exhausted to the atmosphere.
All booths are available in Batch / Conveyorised and Pressurisation option.

anand-impex
anand-impex anand-impex
Requet A Quote
anand-impex anand-impex anand-impex
anand-impex

Booth Liquid Plant - Side Draft ( Wet Wall Paint Booth )


The booth is recommended for large production volumes. A pump draws water from the base tank and carries it to the overhead, overflow tank from where the water flows along the rear wall / guide plate thus keeping rear wall clean, reducing bounce back, improving spray booth atmosphere, enhancing the paint killing efficiency and reducing maintenance. A whirl plate provided at the base of this water wall thoroughly mix the paint particles with the booth water ensuring excellent paint killing.
All booths are available in Batch / Conveyorised and Pressurisation option.
side draft wet wall paint booth

anand-impex
anand-impex anand-impex
Requet A Quote
anand-impex anand-impex anand-impex
anand-impex
Booth Liquid Plant - Side Draft ( Wet Wall )

Side Draft
The Down Draft liquid paint booth is recommended for painting of large articles which are to be painted from all sides but can not be rotated easily, e.g. tractors, bus bodies etc. The air is sucked from the top of the spray chamber. The floor of the working area is made is made of a grill below which the ater tank with whirl plate is placed.
The arrested plates and the blower are housed on the suitable side of the spray chamber.

Suction air filters can be mounted on the top of the spray chamber.

All booths are available in Batch / Conveyorised and Pressurisation option.
